MECTRON MTV-T461

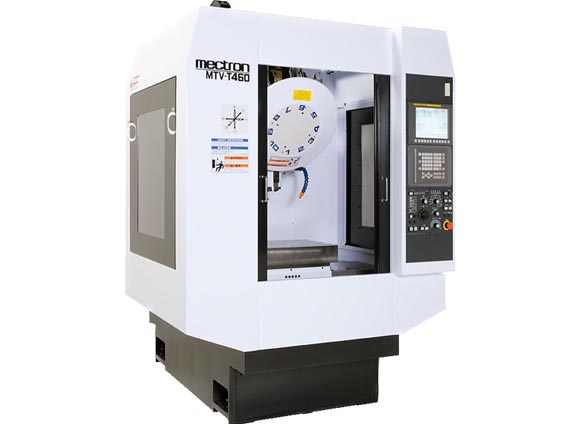

MECTRON MTV-T461 Machine

MECTRON MTV-T461 Machine

MECTRON MTV-T461

Vertical compact machining center, Magazine direct ATC, Automation compatible series

Standard machine X-axis strokes of 360, 500, and 700 (Op) available for increased machine rigidity and support for large workpieces

  • Tool holder/BBT40
  • Maximum spindle rotation speed/10,000 min-1
  • Number of tools stored / 12 (Op15)
  • Movement amount X (S/L), Y, Z/500 (360/700), 420+100, 350
Options:

Thermal displacement compensation, cutter damage detection, tool taper coolant cleaning, spindle through device: 7MPa, spindle air blow, machine light, signal tower, lubricating device, coolant device, mist collector, full cover, auto door, chip conveyor, etc.


Request for Quote
  • Specifications
  • Downloads
Slide Travel X,Y,Z-Axis Std: 500x(420＋100)x350 mm
Small: 360x(420＋100)x350 mm
Large：700x(420＋100)x350 mm ※1
Height of Spindle Nose from Table 250~600mm
Table size (WxL) Std：500x420 mm
Small: 500x420 mm
Large：700x420 mm ※1
Tables Max.Load Capacity 300kgs
Table Rotation (APC) & Rotation time -
Max. Spindle Speed 10,000 min-1
Max. Speed Rigid Tapping 5,000 min-1
Rapid Traverse Rate X,Y,Z-Axis 50,50,50 m/min
Shank of Tool Holders BBT40+P40T-II
Tool Change System Magazine direct system
No. of Tool Pot 12(op 15)pcs
Max. Tool Diameter x Tool Length φ80x250mm
Max. Tool weight (total) 4.0 kgs
Tool Change Time Tool to Tool/Chip to Chip 1.2/2.5 seconds
Max. Height of Machine 2,575mm
Min. Height of Machine 2,250mm
Size of Machine (Width, Depth) Std: 1,500x2,255 mm
Small: 1,250x2,255 mm
Large: 1,850x2,255 mm ※1
Machine weight Std：2,800 kgs
Small: 2,800 kgs
Large：2,900 kgs ※1
NC unit FANUC 0i-MF Plus
Power-supply voltage AC200V　3 Phase
Power capacity required 17.3 KVA
Positioning accuracy/Repeated Positioning accuracy 0.005/+-0.003 mm
Machining Capability Drilling/Tapping ADC12　φ42F0.2/M39x2.0 mm
FC250　φ38F0.15/M33x3.0 mm
S45C　φ32F0.15/M27x2.0 mm

*The X-axis travel distance of MTV-T361/T461 can be 700mm as an option.
※1 Large is only for magazine direct ATC
※Due to improvements, some specifications and features may be changed without notice.
